1200Mbps Wireless VDSL2 Router
11ac 2T2R + 11bgn 2T2R Dual-Band Concurrent
Model: RN104R4GC-2T2R-A3
- High performance wireless speeds up to 1200Mbps
- Super-fast concurrent dual-band (2.4GHz and 5GHz)
- High-Gain antennas for superior wireless coverage
- VDSL2 standards ensuring high-speed Internet access up to 100Mbps downstream & upstream
- VDSL/VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
- 2T2R MIMO Technology delivers excellent throughput and performance.
- Support WiFi On/Off, WPS configuration with 1-Push button
- Advanced 64 / 128-bit WEP, WPA, WPA2, WPS encryption protects your network from security threats
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Specification
| Standards | IEEE 802.11b/g/n (2.4GHz) ; IEEE 802.11ac (5GHz) Compliant with VDSL2 Standard, ITU-T G.994.1 and 997.1 VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a Supports Annex A, Annex B 802.1p VLAN ID supported Backward compatible with ADSL2+ |
|---|---|
| Data Rate | 300Mbps (2.4GHz) ; 866Mbps (5GHz) |

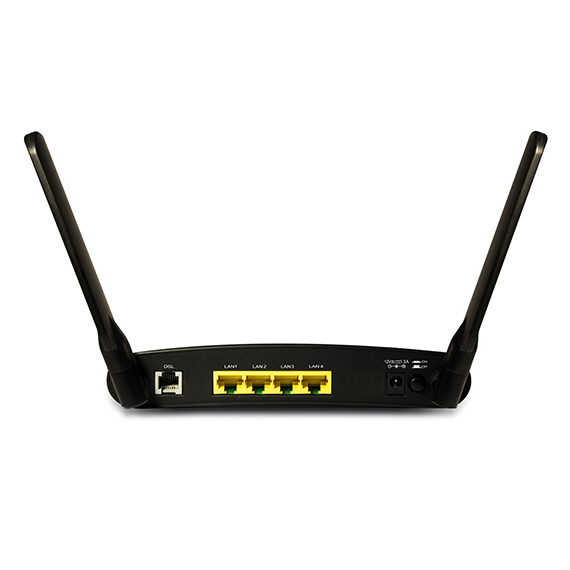

| Interface | 1 * DC Power Jack 1 * RJ11 Phone jacks for V/ADSL connection 4 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port |
| Features | IGMP snooping and IGMP proxy IPv4/IPv6 dual stacks function VPN pass through Management - HTTP Web-based Configuration Remote Management - TR069 / HTTP |
| Button | WPS, Power On/Off, Reset |
| LED | Power, DSL, WLAN, WPS, 4 x LAN |
| Antenna | 2 x 5dbi Dual-Band External Antennas |
| Wireless Security | 64 / 128-bit WEP,WPA, WPA2, WPS |
| Operating Environment | Operating temperature: 0 – 40°C Storage temperature: -20 – 70°C Humidity: 20 – 95%RH non-condensing |
| Dimensions | 185 (L) × 128 (W) × 36(H) mm |
| Package | 1pcs Wireless VDSL2 Router 1pcs Power Adaptor 1pcs Quick Installation Guide 1pcs Ethernet Cable (RJ-45) 1pcs Telephone Cable (RJ-11) 1pcs Splitter (Optional) |
